Pictures (r1) #

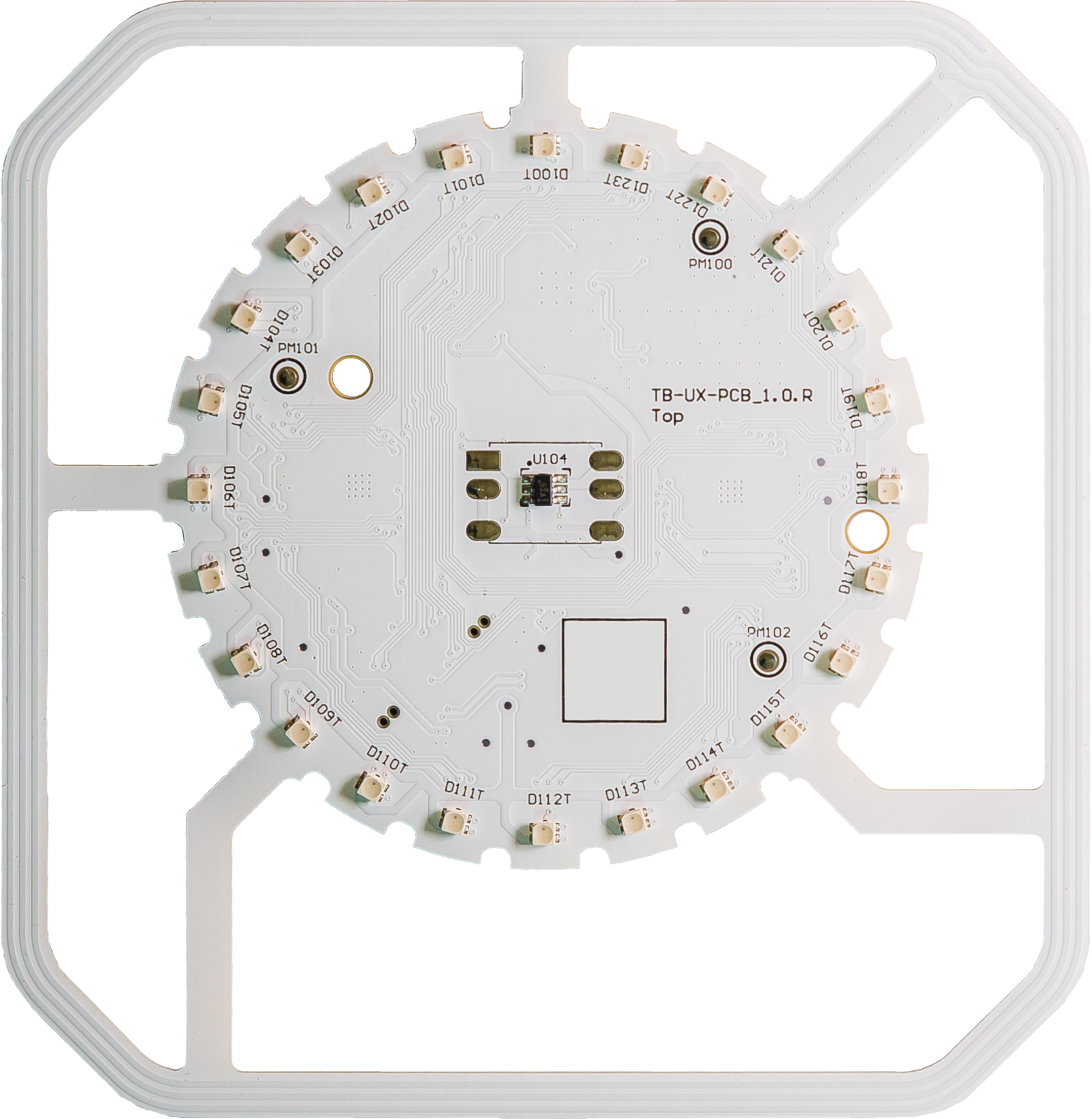

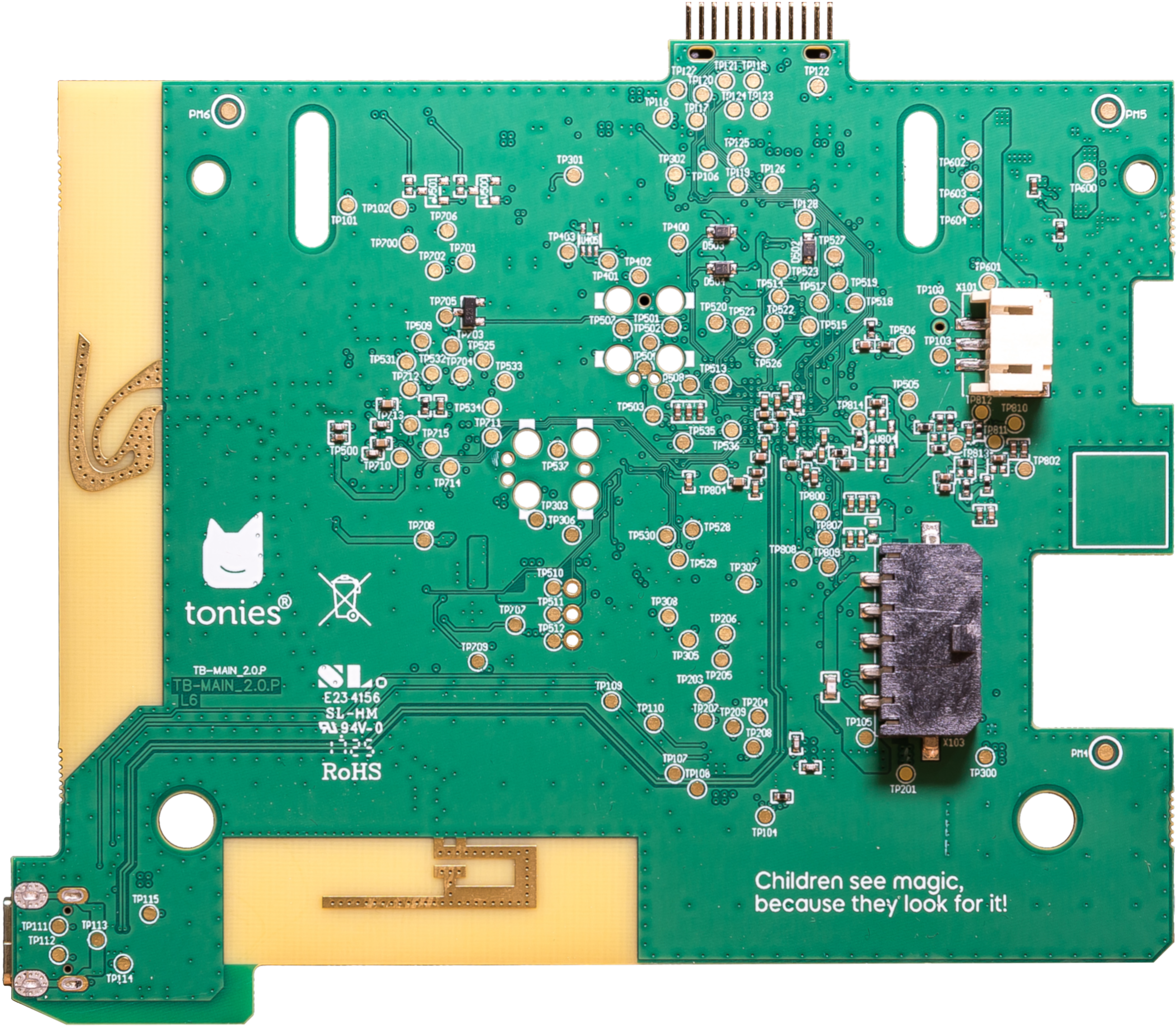

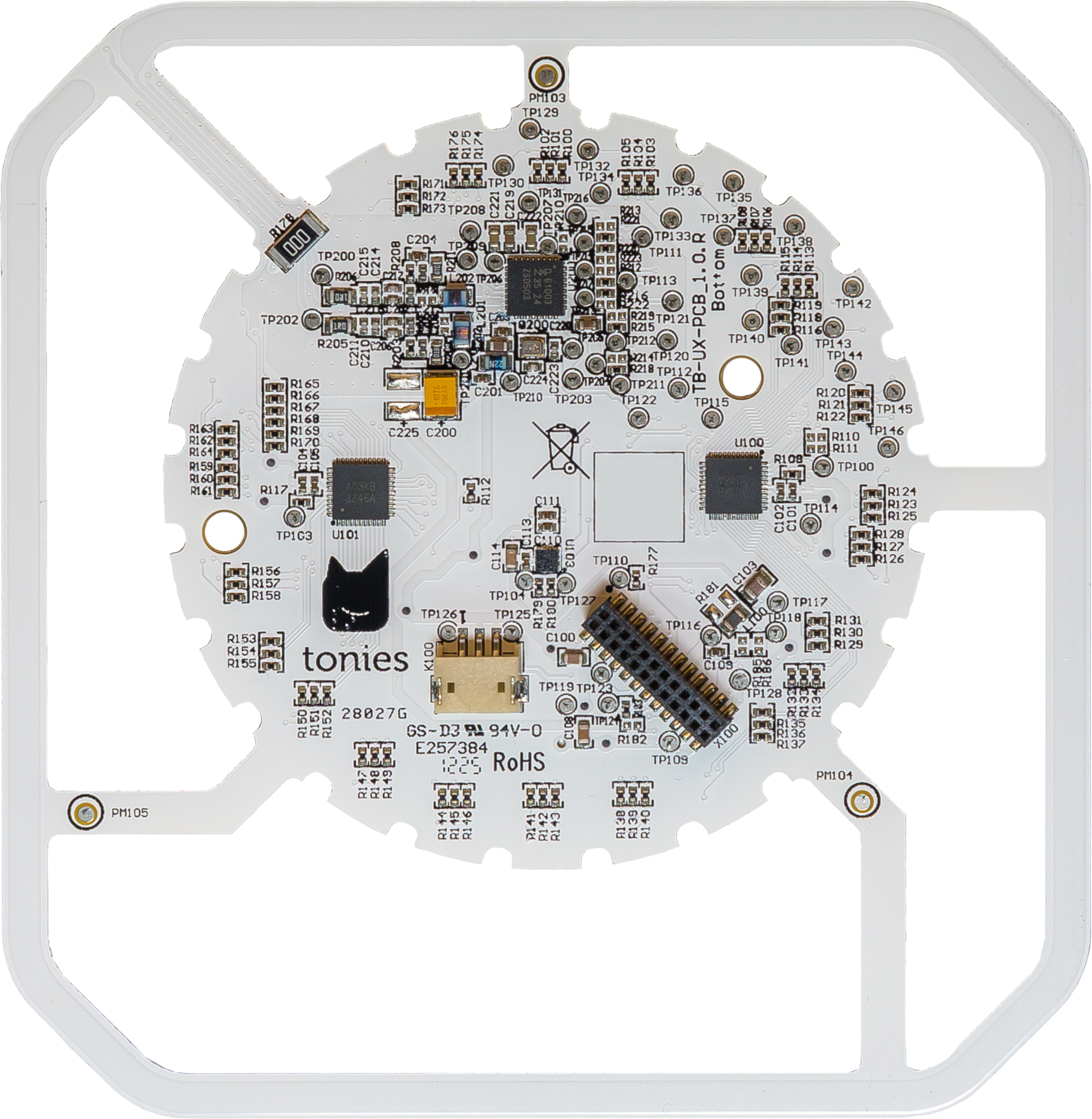

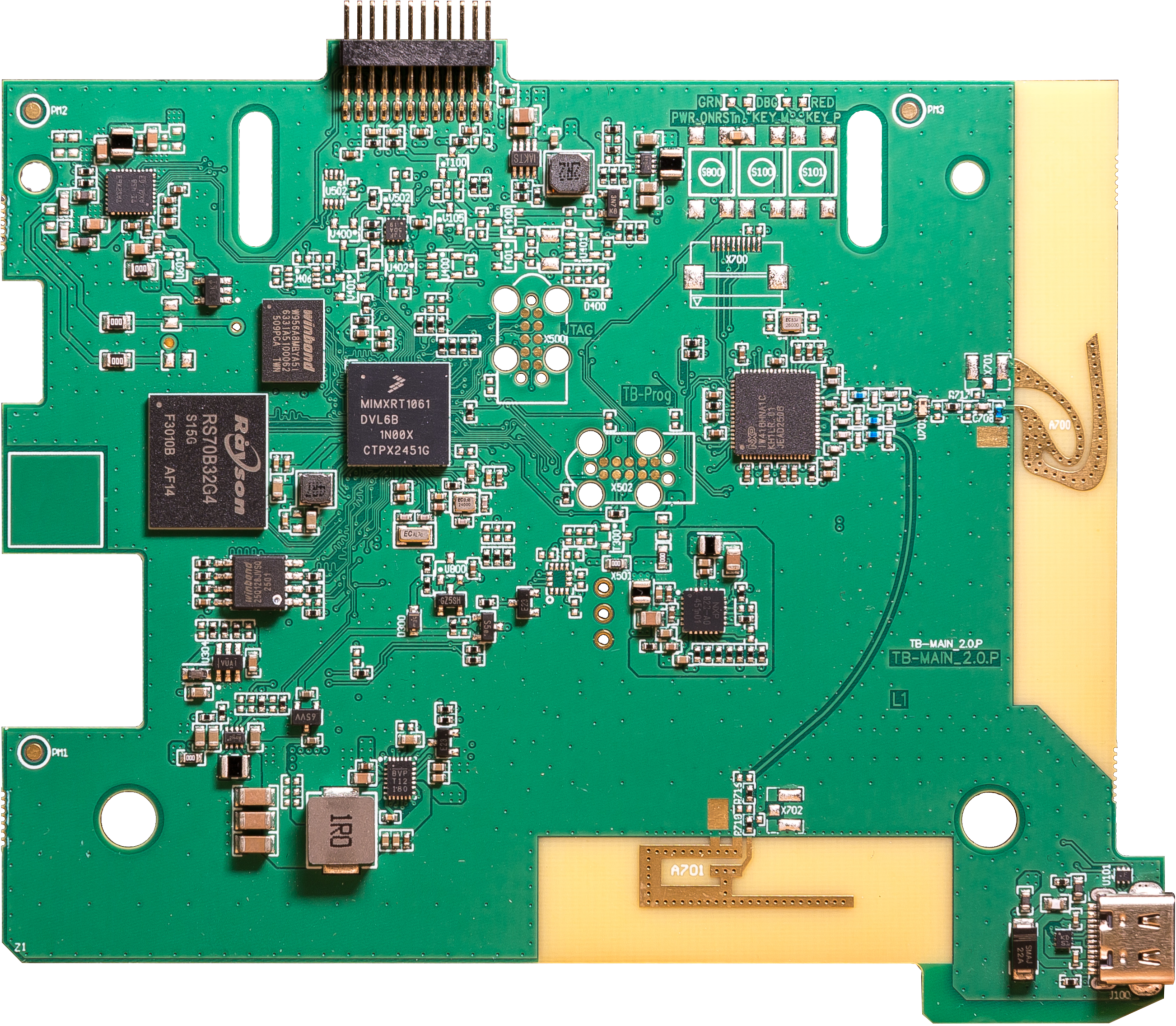

Board #
Parts #
TAS2X63 TI 458 AXGJ G3 #
NXP IW416HNA1C KJ1GC.01 JEAD2509 #
NXP 823-A0 452n02 #
MIMXRT1061 DVL6B 1N00X CTQG2502B #
Winbond W956A8MBYA5I 6331A5100ZV2 510PCA TWN #
Rayson RS70B32G4 S15G F3010B AF14 #
Winbond 250128JYSQ 2518 #
Table #
| Chip Designation | Manufacturer | Function (Assumed) | Datasheet (PDF) |
|---|---|---|---|
| TAS2X63 TI 458 AXGJ G3 | Texas Instruments | Audio amplifier (TAS2x63 series, very likely TAS2563) | [TI TAS2563 PDF] |
| IW416HNA1C KJ1GC.01 JEAD2509 | NXP | WiFi/Bluetooth transceiver (IW416 series) | [NXP IW416 PDF] |
| 823-A0 452n02 (NXP) | NXP | Unclear, possibly PMIC or sub-chip, no clear assignment | No public datasheet |
| MIMXRT1061 DVL6B 1N00X CTQG2502B | NXP | ARM Cortex-M7 MCU (RT1060 family) | [NXP MIMXRT1061 PDF] |
| Winbond W956A8MBYA5I 6331A5100ZV2 510PCA TWN | Winbond | 512Mb DDR3 SDRAM | [Winbond W956A8MBYA5I PDF] |
| Rayson RS70B32G4 S15G F3010B AF14 | Rayson | High-speed relay/IC (barely public, possibly special chip) | No public datasheet |
| Winbond 250128JYSQ 2518 | Winbond | 128Mb SPI NOR Flash | [Winbond W25Q128JVSQ PDF] |
Notes & Corrections #
- For the 823-A0 452n02 chip from NXP, it is most likely a custom part or a sub-module with no public datasheet available.
- Rayson RS70B32G4 is very likely a relay or interface chip from Rayson, but no public datasheet can be found.
- All other chips are in the correct manufacturer families and the part numbers match the visible markings on the board.
- The Winbond number 250128JYSQ should correctly read as W25Q128JVSQ, which is the common Winbond 128Mb SPI Flash IC.
- For the TI audio chip, TAS2563 is very likely the correct assignment, as the ending numbers/appearance match. Datasheets for TAS2x63 and TAS2563 are relevant.
- TI TAS2563: https://www.ti.com/product/TAS2563[^1]
- NXP IW416: https://www.nxp.com/docs/en/data-sheet/IW416.pdf[^2]
- NXP MIMXRT1061: https://www.nxp.com/docs/en/data-sheet/IMXRT1060CEC.pdf[^3]
- Winbond W956A8MBYA5I: https://www.winbond.com/resource-files/w956a8mbya5i.pdf[^4]
- Winbond W25Q128JVSQ: https://www.winbond.com/resource-files/w25q128jv spi revc 02122019.pdf
